ECI on new and bespoke contracts via USL TEKSERV.
With more complex and substantial machining demands for projects, Ekspan now operate a state-of-the-art Hurco DCX3226i CNC machine, an essential addition to their in-house manufacturing facilities.
USL Ekspan is the UK's largest quality bearing supplier and installer to meet demands both in the UK and worldwide.
USL Ekspan install an extensive range of mechanical and elastomeric expansion joints and seal joints to CD358 standards.
Bridge jacking and temporary works are an essential part of most bearing replacement and refurbishment operations, ensuring works are carried out safely and efficiently without affecting the integrity of the structure.
The importance of carrying out bearing and expansion joint inspections by proficient and competent engineers who understand their functionality can often be key to maximising a structure’s lifespan and avoiding major, unexpected, emergency repair costs.
USL Ekspan have carried out a number of projects for swing bridges and foot bridges. From design, fabrication of all structural components, to trial erection and final installation. Details of these type of bridge installations can be supplied on request.

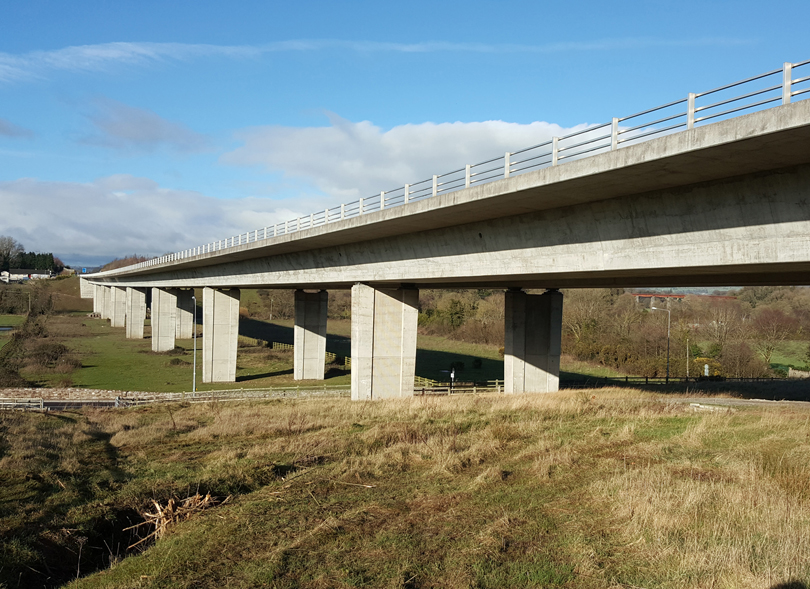

The Fermoy Bypass (circa 450m long) located on the M8 motorway approximately 20km north of Cork, is a multiple span concrete post-tensioned bridge carrying the M8 motorway over the River Blackwater. The M8 forms part of the main link for traffic commuting from Dublin to Cork city. This structure was built and is maintained by Direct Route (contractors for the PPP Project M8 Fermoy/Rathcormac Bypass). Following an in-depth independent investigation, requested by Direct Route, findings revealed the existing joints on the southern abutment in both directions had failed. Measurements and readings taken exposed considerable abnormal shrinkage and creep on the joints, and prestress had caused elastic shortening of the deck. The temperature differences and movement ranges had exceeded the capacity of the movement joint for this bridge, making the existing joints non-functional and proving these, through collated data, to be either an incorrect joint type or incorrectly installed. Direct Route required these joints renewing with a suitable joint system to accommodate the more than originally anticipated movement range for the M8 Fermoy Bypass.

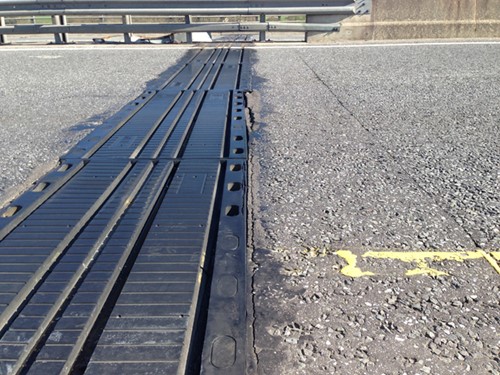

Failed expansion joint - Showing detachment from surface, delamination and joint exposure
USL Ekpan's Workforce
USL Ekspan were approached by Direct Route to undertake a full inspection of the current expansion joints on both north and south abutments to establish current conditions and advise remedial works required. On submission of their report, USL Ekspan were contracted to remove and replace the failed joints on the south abutment.

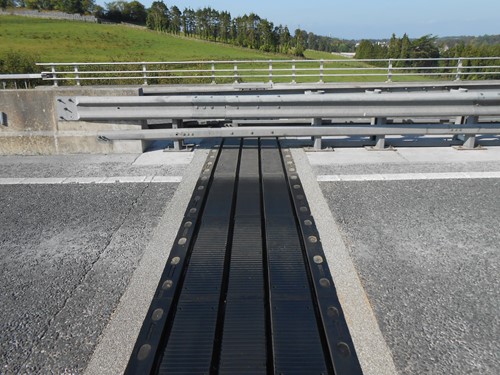

New installed TF1300 expansion joint
USL Ekspan’s inspection had also verified the failing of the south abutment expansion joints and their incapability to achieve the designed bridge movements or accommodate the bridge expansion gap between the deck and abutment ballast wall. This inadequacy had forced the joint fixings to rotate and shear due to the bridge’s large thermal movements and the loads/speeds of vehicles travelling across.
The joint was audible and sporadic bouncing was visible during transit. Eventually this would result in the joint lifting out of the road, creating a catastrophic hazard to motorists, especially motorbikes. The north abutment joints had deteriorated, not to the same extent, but also required maintenance as these too were likely to fail in the same way.

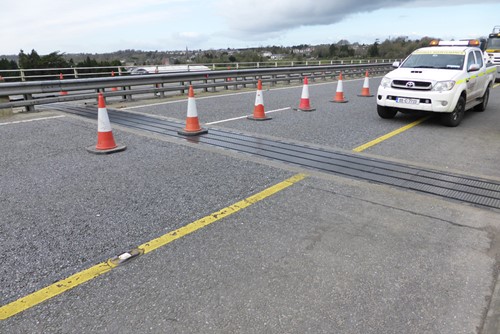

Completion of replaced expansion joint
USL Ekspan’s programme of works was undertaken in three phases. These included removal of the south abutment joints; installation of the secondary seal and down pipes to suit the existing drainage arrangement and installation of one 23 m TF 1300 over both carriageways. Remedial works were carried out on the north abutment joints.
This project was successfully coordinated and completed in line with lane closures, on time and to budget.
